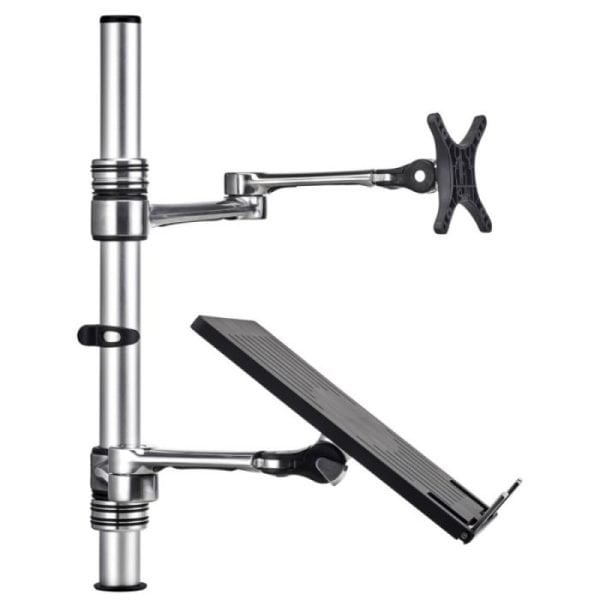

Atdec AFS-AT-NBC Monitor/Laptop Combo Arm

AFS-AT-NBC
Dual notebook/monitor arm combo desk mount

The AFS-AT-NBC provides a mounting solution for notebook users who work with additional monitors. The system ships with two arms that can be independently adjusted for height, position and orientation. It allows a high degree of operational flexibility with configuration that can be adapted to the work environment, user situation, and task at hand. The monitor and laptop display can be positioned side by side for a dual screen configuration or separated for detail examination and group work. While improving productivity, the AFS-AT-NBC can help reduce eye strain and encourage a healthier posture.

This solution consists of the following individual components:

1 x AF-AT single display desk mount and 1 x AF-AN accessory notebook arm.

Flat Packed Boxed
Simple Assembly required (Tools supplied)
Lead Time: Next day dispatch + Delivery Time to your region

Options


or 6 payments from $59.83 by Laybuy More info

SKU: AFS-AT-NBC.



Working From Home?  We can deliver this week:

Boxed Flat packed for Self-Assembly – Australia Wide

**Non Contact Delivery Available



Product specifications:

Flat screen monitors: maximum load up to 8kg
Curved screen monitors: maximum load up to 5.5kg
Supports up to 18″ notebooks (8kg)
Optional 360° arm rotation (can be limited to 180°)
Supports mini PCs (AC-MP accessory sold separately)
Includes c-clamp and bolt through desk fixing options
10-year warranty
Installation hardware included

Functionality specifications:

Ergonomic
Landscape to portrait rotation
Screen sharing capability
Engineered bearing joints for smooth movement
Quick-release display head with security screw
Glare control and optimal viewing angle adjustment via tilt and pan capabilities
Individual monitor height requirements settings

Additional design considerations:

Tool-less height adjustment
Advanced, integrated cable management for a clean look
Lightweight, durable, recyclable aluminium construction
Available in silver, black, or white
Sleek, supple design

Product code AFS-AT-NBC

Upgradable to carry additional display: No

Material Aluminium

Colour Options Silver, black, white

Warranty 10 years

Desk fixing options Bolt through and desk clamp options included

Minimum display weight: 0kg

Flat screen: maximum supported weight: 8kg

Curved screen: maximum supported weight: 5.5kg

VESA mounting hole pattern: 75×75 mm, 100×100 mm

Maximum desk thickness allowed 76mm (Desk Clamp); 40mm
(Bolt-through)

Spring assisted height adjustability: No

Rotation around pole: 360° rotation/ 180° with rotation limiter

Tilt adjustment: -70° to 70°

Pan adjustment: 180° at the display head

Landscape to portrait screen rotation: Yes

Height adjustable: Yes

Maximum arm reach: 422mm

Product Brochure:PDF

Installation Guide:PDF

Technical Specifications:PDF

CAD 3D step:PDF
