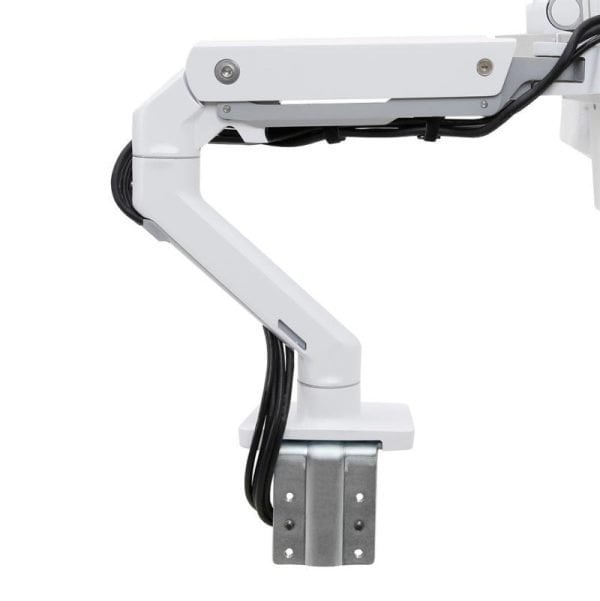

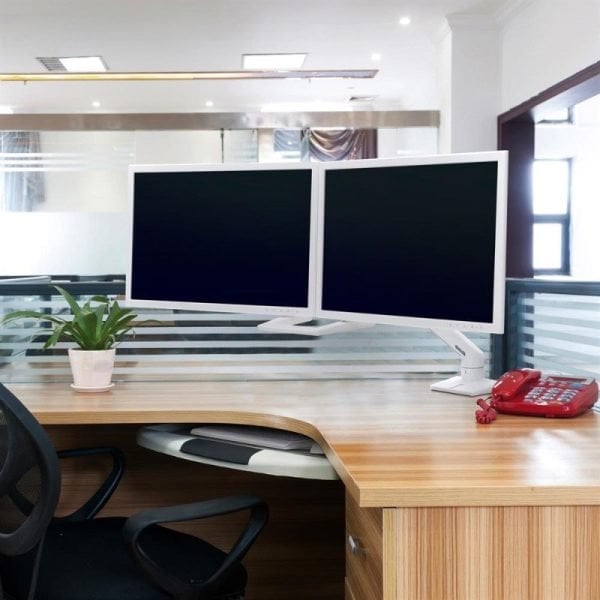

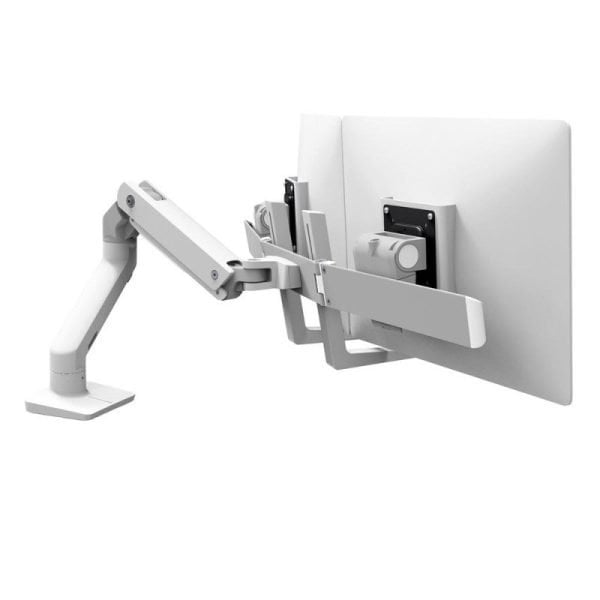

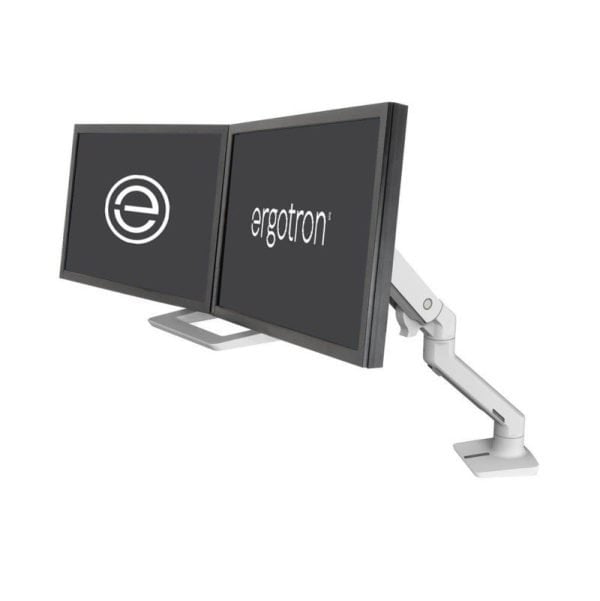

Ergotron HX Dual Monitor Arm

Ergotron HX Dual Monitor ArmErgotron HX Dual Monitor ArmErgotron HX Dual Monitor Arm
Ergotron HX Dual Monitor Arm
Ergotron HX Dual Monitor Arm
Ergotron HX Dual Monitor Arm

The HX Dual Desk Monitor Arm, can easily reposition 2 large monitors  up to 32 inches and weighing up to 7.9kg per monitor easily with the convenient handle.




or 6 payments from $81.66 by Laybuy More info

HX Monitor Arm Colour

White, Black, Polished

Flat Packed Boxed Product – Assembly Required

Complete with 2 mounting options:
Clamp mount to fit (1 to 6.6 cm) thick worktops.
Grommet mount – mounts through holes in worktop.

Suits Monitors:
Weight: 2 x 2.3kg – 7.9kg monitors
(min) 4.6kg – (max) 15.8kg

Size: 32 inches

Choose a monitor arm that’s as adaptable as you. With the HX Desk Dual Monitor Arm, you can easily reposition two 32″ monitors using patented Constant Force™ Technology.

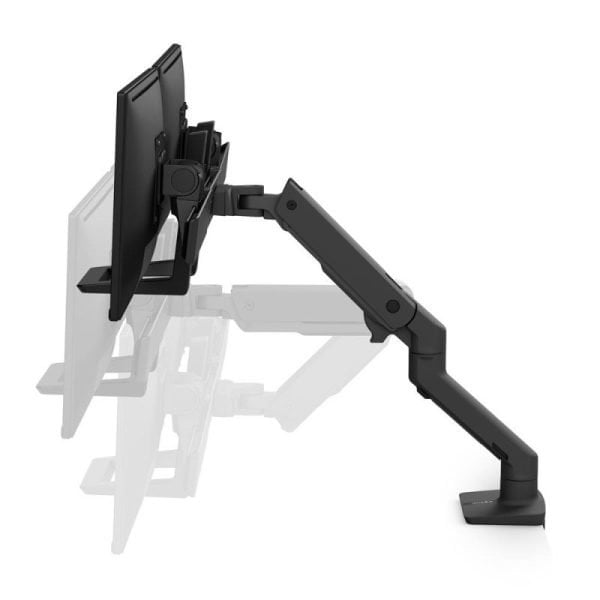

The hinged bow lets you easily pan your monitors 40 degrees forwards for comfortable viewing and 90 degrees backwards for screen sharing.

It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

  • Personalized views
    Independent pivots rotate, pan and tilt each monitor
  • Rotation stop
    Avoid hitting cube walls with a rotation-stop on the base
  • Saves space
    Places screen in the best view to tackle each to-do
  • Sleek build
    Cables stay hidden under the arm and through the extension
  • Sustainable choice
    BIFMA level® 2 certified for a low environmental and social impact
  • Quality design
    Built for thousands of movements by passing 10,000-cycle test
  • UPC: 698833084481
  • Part Number (color):
  • 45-476-216 (white)
  • 45-476-026 (polished aluminum)
  • 45-476-224 (matte black)
  • Description: HX Desk Dual Monitor Arm
  • Includes arm, extension, hinge bow, (2) monitor pivots, handle and desk clamp, grommet mount, monitor mounting hardware
  • Desk clamp attaches to surface edge .4″ to 2.4″ (1 to 6.6 cm) thick
  • Grommet Mount (included) attaches through surface holes
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Portrait/landscape rotation with lockout
  • Streamline cable management that routes cables under arm and within extension
  • ‡ Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
  • * Weight Capacity: Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
  • Monitor depth greater than 2.5″ (6.4 cm) may diminish capacity
  • ** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
  • Hinge bow turns 40° inward and 90° outward
  • † Tilt Range: 70° backward, 5° forward
  • Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
  • Up to 24.5″ (60 cm) extended reach and 11.5″ (29.2 cm) vertical height adjustment
  • This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
  • Product Weight: 22.75 lb (10.3 kg)
  • Shipping Dimensions: 16.0″ x 18.8″ x 7.5″ (48 x 41 x 19 cm)
  • Shipping Weight: 26.9 lbs (12.2 kg)
  • Warranty: Ten (10) years

Ergotron HX Dual Monitor ArmErgotron HX Dual Monitor ArmErgotron HX Dual Monitor ArmErgotron HX Dual Monitor Arm

  • Part Number (color):
  • 45-476-216 (white)
  • 45-476-026 (polished aluminum)
  • 45-476-224 (matte black)

10 Year Manufacturers Warranty
