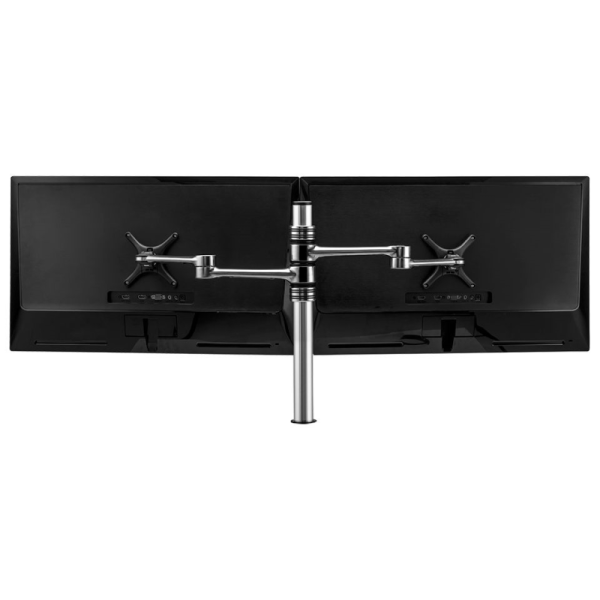

Atdec AF-AT-D Dual Monitor Arm

AFS-AT-DC
Dual display monitor arm

The AFS-AT-DC is designed to support two displays up to 8kg. This desk mount is featuring a 525mm pole with two articulated display arms. The arms can be independently set to the desired height to ensure perfect display alignment be it identical or different size monitors. Easy glare control and focal distance adjustments are possible thanks to three points of articulation on each arm, tilt and pan functions. The rotating function at the VESA head allows applications in either landscape or portrait orientation. The displays can be set in a back-to-back or side-by-side configuration (up to 27" monitors in a side-by-side landscape orientation). Generous cable management completes the sleek and professional look.

This solution consists of the following individual components:

1 x AF-AT single display desk mount and 1 x AF-AA accessory monitor arm.

Flat Packed Boxed
Simple Assembly required (Tools supplied)
Lead Time: Next day dispatch + Delivery Time to your region

Options


or 6 payments from $54.83 by Laybuy More info

SKU: AFS-AT-DC.

Working From Home?  We can deliver this week:

Boxed Flat packed for Self-Assembly – Australia Wide

**Non Contact Delivery Available





Product specifications:

  • Flat screen monitors: maximum load up to 8kg per monitor
  • Curved screen monitors: maximum load up to 5.5kg per monitor
  • Optional 360° arm rotation (can be limited to 180°)
  • Supports mini PCs (AC-MP accessory sold separately)
  • Includes c-clamp and bolt through desk fixing options
  • 10-year warranty
  • Installation hardware included

Functionality specifications:

  • Ergonomic
  • Landscape to portrait rotation
  • Screen sharing capability
  • Engineered bearing joints for smooth movement
  • Quick-release display head with security screw
  • Glare control and optimal viewing angle adjustment via tilt and pan capabilities
  • Individual monitor height requirements settings

Additional design considerations:

  • Tool-less height adjustment
  • Advanced, integrated cable management for a clean look
  • Lightweight, durable, recyclable aluminium construction
  • Available in silver, black, or white
  • Sleek, supple design

Product code AFS-AT-DC

Upgradable to carry additional display: Yes

Material Aluminium

Colour Options Silver, black, white

Warranty 10 years

Desk fixing options Bolt through and desk clamp options included

Minimum display weight: 0kg

Flat screen: maximum supported weight: 8kg

Curved screen: maximum supported weight: 5.5kg

VESA mounting hole pattern: 75x75mm, 100x100mm

Maximum desk thickness allowed 76mm (Desk Clamp); 40mm (Bolt-through)

Spring assisted height adjustability: No

Rotation around pole: 360° rotation/ 180° with rotation limiter

Tilt adjustment: -70° to 70°

Pan adjustment: 180° at the display head

Landscape to portrait screen rotation: Yes

Height adjustable: Yes

Maximum arm reach: 422mm

Product Brochure:PDF

CAD 3D step:PDF

Installatoin Guide:PDF

Technical Specifications:PDF
